Installing and configuring IBM Spectrum Scale for OpenShift 4.3

In this article we are going to install and configure IBM Spectrum Scale (GPFS) 5.0.4.2 for dynamic PVs provisioning. In my OpenShift cluster I have 5 Workers with a 300GB disk installed for each of them which will be united in a storage quorum. As a GPFS GUI and API server I am going to use another machine which is neither in the OpenShift cluster nor the storage quorum.

Steps to run on EACH OF the 5 Workers

Create a partition for the installed block device (300GiB /dev/sdb in my case). You can list all partitions using fdisk -l command.
fdisk /dev/sdb

  Welcome to fdisk (util-linux 2.23.2).
  Changes will remain in memory only, until you decide to write them.
  Be careful before using the write command.
  Device does not contain a recognized partition table
  Building a new DOS disklabel with disk identifier 0xc3525989.
  Command (m for help): n
  Partition type:
  p primary (0 primary, 0 extended, 4 free)
  e extended
  Select (default p): p
  Partition number (1-4, default 1):
  First sector (2048-629145600, default 2048):
  Using default value 2048
  Last sector, +sectors or +size{K,M,G} (2048-629145600, default 209715199):
  Using default value 629145600
  Partition 1 of type Linux and of size 300 GiB is set
  Command (m for help): t
  Selected partition 1
  Hex code (type L to list all codes): 0
  Changed type of partition 'Linux' to 'Empty'
  Command (m for help): w
  The partition table has been altered!
  Calling ioctl() to re-read partition table.
  Syncing disks.

Please validate your steps with the following link from the official documentation:
https://www.ibm.com/support/knowledgecenter/SSCJDQ/com.ibm.swg.im.dashdb.doc/admin/GPFS-FPO_setup.html

Please ensure that communication between your Workers and a GPFS GUI machine is possible using passwordless SSH. Follow step 2 in the link above to configure this.

Partition the data across the Network Shared Disks (NSDs)
partprobe -s
parted /dev/sdb mklabel gpt
parted /dev/sdb -s -a optimal mkpart primary 0% 100%

Install the IBM Spectrum Scale FPO binary file

yum -y install unzip ksh perl libaio.x86_64 net-tools m4 kernel-devel gcc-c++ psmisc.x86_64 kernel-devel.x86_64
mkdir /root/spectrum_scale
cd /root/spectrum_scale

Download Spectrum_Scale_Advanced-5.0.4.2-x86_64-Linux-install. This manual suggests you have access and rights to download and use required software.

chmod +x Spectrum_Scale_Advanced-5.0.4.2-x86_64-Linux-install
./Spectrum_Scale_Advanced-5.0.4.2-x86_64-Linux-install
cd /usr/lpp/mmfs/5.0.4.2/gpfs_rpms
rpm -ivh gpfs.base*.rpm gpfs.gpl*rpm gpfs.license.adv*.rpm gpfs.gskit*rpm gpfs.msg*rpm gpfs.adv*rpm gpfs.crypto*rpm
sed -i 's/)/) Red Hat Enterprise Linux/g' /etc/redhat-release
/usr/lpp/mmfs/bin/mmbuildgpl

On a node which is reserved for Spectrum Scale GUI and API (a separate machine!!! - in my case called worker6) run the following commands:

yum install -y lsof postgresql-contrib postgresql-server boost-regex nc bzip2
mkdir /root/spectrum_scale && cd /root/spectrum_scale
chmod +x Spectrum_Scale_Advanced-5.0.4.2-x86_64-Linux-install
./Spectrum_Scale_Advanced-5.0.4.2-x86_64-Linux-install
yum -y install unzip ksh perl libaio.x86_64 net-tools m4 kernel-devel gcc-c++ psmisc.x86_64 kernel-devel.x86_64
cd /usr/lpp/mmfs/5.0.4.2/gpfs_rpms
rpm -ivh gpfs.base*.rpm gpfs.gpl*rpm gpfs.license.adv*.rpm gpfs.gskit*rpm gpfs.msg*rpm gpfs.adv*rpm gpfs.crypto*rpm
sed -i 's/)/) Red Hat Enterprise Linux/g' /etc/redhat-release
/usr/lpp/mmfs/bin/mmbuildgpl

Troubleshooting
I recognised that the last command can fail if the kernel version is 3.10.0-112 and you can catch a kernel related error as a result of the last command.
First of all, check installed kernel packages:
yum list installed | grep kernel
If kernel version is 3.10.0-1127.el7 then it should be set to 3.10.0-1062.12.1.el7.x86_64
This article describes how to do this:
https://access.redhat.com/solutions/3089
reboot is required after: shutdown -r now
If you get errors with headers like: "The required package kernel-devel (kernel-devel-3.10.0-1127.el7.x8664) is already installed but headers are missing in the expected location". Then reinstall kernel-devel with the correct version.
yum -y remove kernel-devel && yum -y install "kernel-devel-uname-r == $(uname -r)"
If you need to remove unused kernel packages you can use rpm -qa | grep kernel to find them out and yum remove <package_name>
These versions worked for me:

Steps to run on the head node ONLY

I chose Worker1 as a head node. Configure IBM Spectrum Scale FPO by performing the following substeps:
export PATH=$PATH:/usr/lpp/mmfs/bin
mkdir /root/gpfs && cd /root/gpfs
Create a nodes file with the following content. Worker6 is for GPFS GUI and inspite of its name it is not in OpenShift Cluster, it's just a standalone machine that accidentally got worker6 hostname.
vi gpfs-fpo-nodefile

  worker1.ocp01.marukhno.com:quorum-manager:
  worker2.ocp01.marukhno.com:quorum-manager:
  worker3.ocp01.marukhno.com:quorum-manager:
  worker4.ocp01.marukhno.com:quorum-manager:
  worker5.ocp01.marukhno.com:quorum-manager:
  worker6.ocp01.marukhno.com:manager-nonquorum:

Create the cluster by issuing the mmcrcluster command with the -N, -p, -s, -r, and -R parameters. Please check again that passwordless SSH is configured between your machines before running nex commands!!!
For more detailes follow this link:
https://www.ibm.com/support/knowledgecenter/STXKQY_5.0.4/com.ibm.spectrum.scale.v5r04.doc/bl1adm_mmcrcluster.htm
mmcrcluster -N gpfs-fpo-nodefile -p worker1.ocp01.marukhno.com -s worker2.ocp01.marukhno.com -C gpfs-fpo-cluster -A -r /usr/bin/ssh -R /usr/bin/scp

Set the license mode for each node by issuing the mmchlicense command.

mmchlicense server --accept -N worker1.ocp01.marukhno.com
mmchlicense server --accept -N worker2.ocp01.marukhno.com
mmchlicense server --accept -N worker3.ocp01.marukhno.com
mmchlicense server --accept -N worker4.ocp01.marukhno.com
mmchlicense server --accept -N worker5.ocp01.marukhno.com
mmchlicense server --accept -N worker6.ocp01.marukhno.com

Start the cluster
mmstartup -a

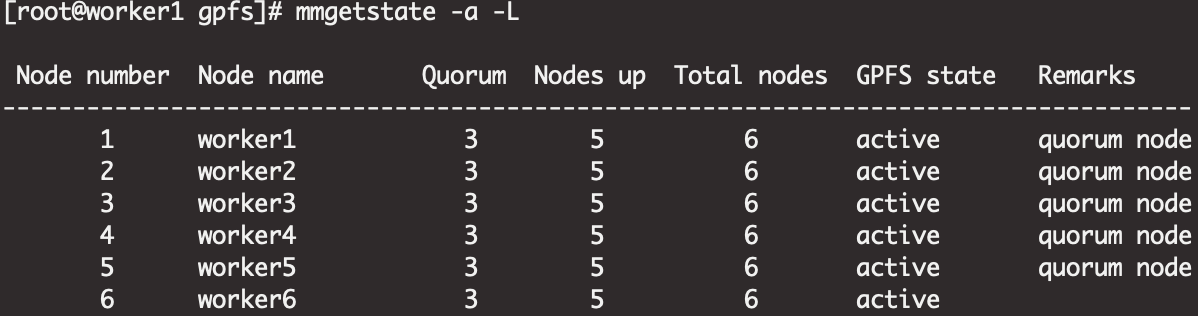

Issue the following command. Ensure that the output shows that all nodes are active:
mmgetstate -a -L

Create fpo-poolfile
vi fpo-poolfile

  %pool:
  pool=system
  blocksize=1024K
  usage=dataAndMetadata
  layoutMap=cluster
  allowWriteAffinity=yes
  writeAffinityDepth=1
  blockGroupFactor=10
  %nsd: nsd=worker1_hdd_1 device=/dev/sdb servers=worker1.ocp01.marukhno.com failureGroup=1,0,1 pool=system
  %nsd: nsd=worker2_hdd_1 device=/dev/sdb servers=worker2.ocp01.marukhno.com failureGroup=2,0,1 pool=system
  %nsd: nsd=worker3_hdd_1 device=/dev/sdb servers=worker3.ocp01.marukhno.com failureGroup=3,0,1 pool=system
  %nsd: nsd=worker4_hdd_1 device=/dev/sdb servers=worker4.ocp01.marukhno.com failureGroup=4,0,1 pool=system
  %nsd: nsd=worker5_hdd_1 device=/dev/sdb servers=worker5.ocp01.marukhno.com failureGroup=5,0,1 pool=system

Configure the disks for the cluster by issuing the mmcrnsd command
mmcrnsd -F fpo-poolfile

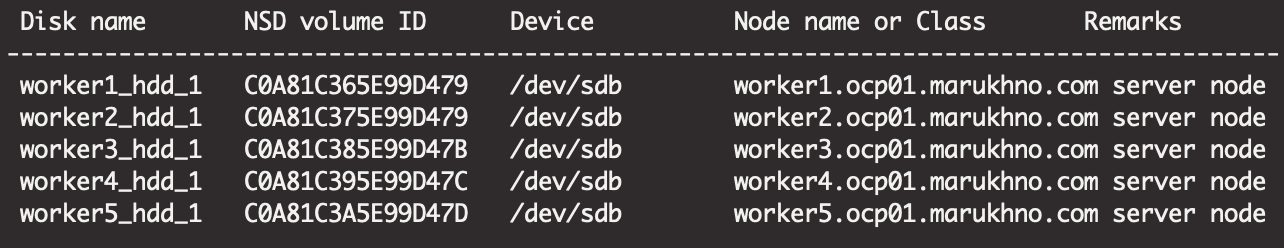

Verify that the disks were added by issuing the following command
mmlsnsd -m

Create the cluster file system by issuing the mmcrfs command. An example follows. Please ensure that they are appropriate for your setup.
mmcrfs clusterfs -F fpo-poolfile -j scatter -B 1048576 -L 16M -A yes -i 4096 -m 3 -M 3 -n 32 -r 3 -R 3 -S relatime -E no -T /root/clusterfs

Mount the cluster file system by issuing the following command
mmmount clusterfs /root/clusterfs -N all

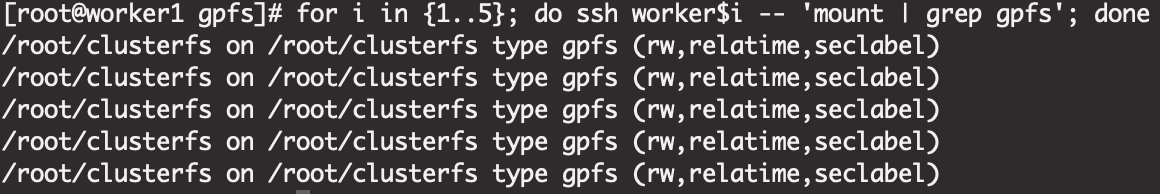

Verify that the cluster file system is mounted on all nodes
for i in {1..5}; do ssh worker$i -- 'mount | grep gpfs'; done

Install Spectrum Scale GUI and API

Now we will install Spectrum Scale GUI and API on a separate machine which is neither in OCP cluster nor GPFS quorum. In my case this machine has hostname worker6.

More information about this step is in the official documentation
https://www.ibm.com/support/knowledgecenter/STXKQY_5.0.4/com.ibm.spectrum.scale.v5r04.doc/bl1ins_manualinstallofgui.htm

Spectrum Scale must be already installed on this machine. Be sure that you completed the steps described in the block above "On a node which is reserved for Spectrum Scale GUI and API".

Install and start GPFS GUI

cd /usr/lpp/mmfs/5.0.4.2/zimon_rpms/rhel7/
rpm -ivh gpfs.gss.pmcollector-5.0.4-2.el7.x86_64.rpm
rpm -ivh gpfs.gss.pmsensors-5.0.4-2.el7.x86_64.rpm

cd /usr/lpp/mmfs/5.0.4.2/gpfs_rpms
rpm -ivh gpfs.java-5.0.4-2.x86_64.rpm
rpm -ivh gpfs.base-5.0.4-2.x86_64.rpm
rpm -ivh gpfs.gskit-8.0.50-86.x86_64.rpm
rpm -ivh gpfs.gui-5.0.4-2.noarch.rpm

systemctl start gpfsgui && systemctl enable gpfsgui

Create two required users. You will be prompted to create a password after each command.
/usr/lpp/mmfs/gui/cli/mkuser gpfsadmin -g SecurityAdmin
/usr/lpp/mmfs/gui/cli/mkuser csiadmin -g CsiAdmin

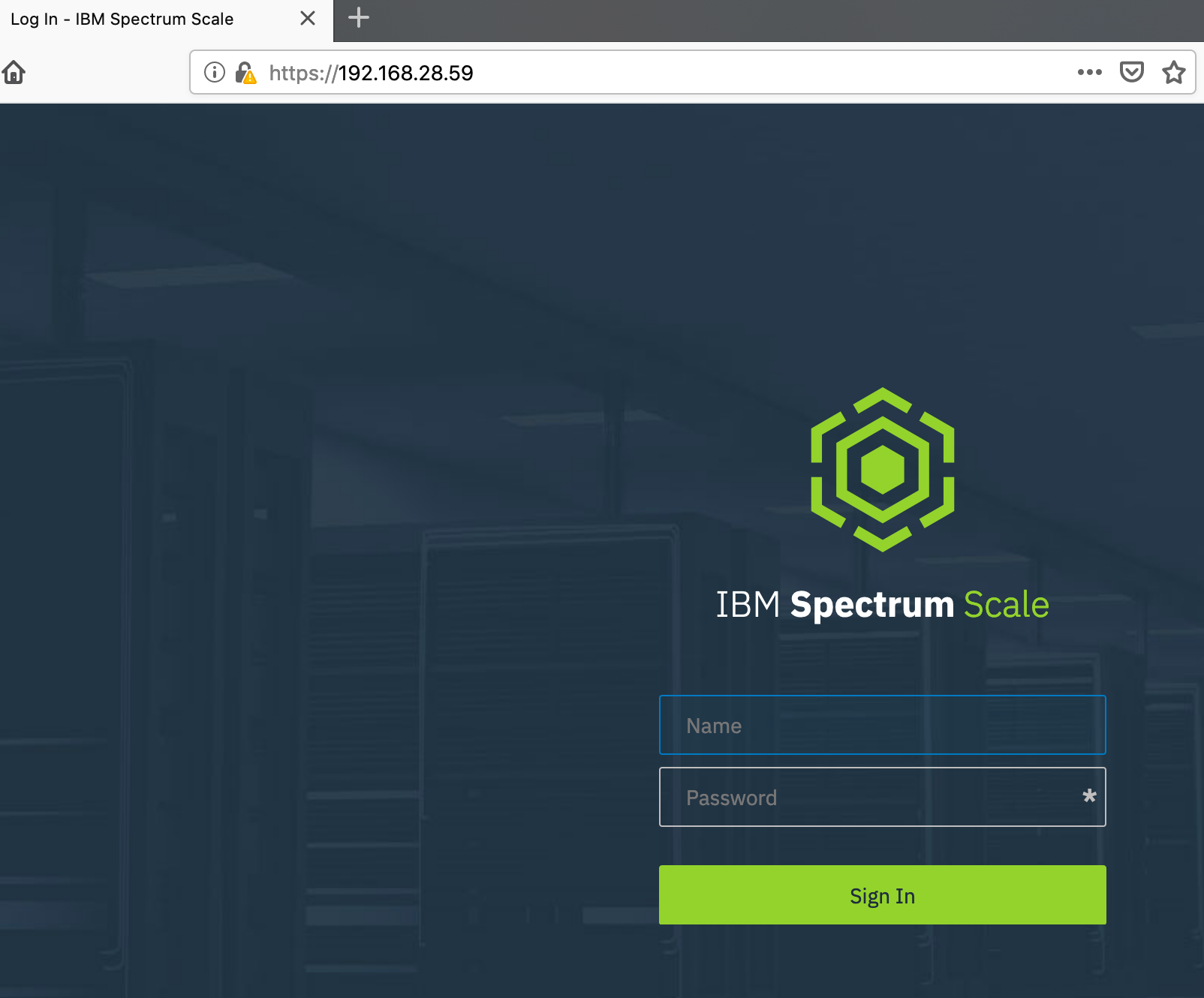

Check that GUI is available. Open the following link in a browser: https://<server_ip>/

Optionally you can configure metrics collector for GPFS GUI. In order to do this run the following commands:

cd /usr/lpp/mmfs/5.0.4.2/zimon_rpms/rhel7/
rpm -ivh gpfs.gss.pmcollector-5.0.4-2.el7.x86_64.rpm
rpm -ivh gpfs.gss.pmsensors-5.0.4-2.el7.x86_64.rpm
systemctl start pmsensors && systemctl enable pmsensors
systemctl start pmcollector && systemctl enable pmcollector
export PATH=$PATH:/usr/lpp/mmfs/bin
mmperfmon config generate --collectors worker1.ocp01.marukhno.com
mmchnode --perfmon -N worker1.ocp01.marukhno.com

Check the status of all services
systemctl status pmsensors
systemctl status pmcollector
systemctl status gpfsgui

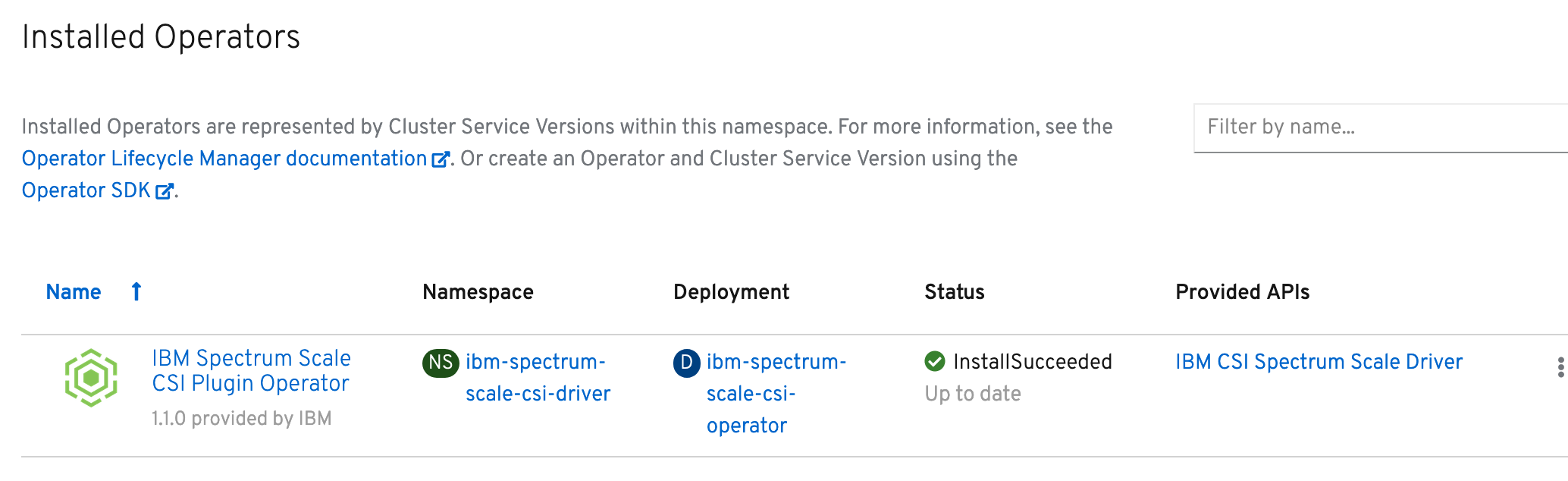

Install IBM Spectrum Scale CSI Plugin Operator

More details can be found here: https://developer.ibm.com/storage/2020/01/20/how-to-use-ibm-spectrum-scale-with-csi-operator-1-0-on-openshift-4-2-sample-usage-scenario-with-tensorflow-deployment/

Make sure the filesystems you want to use in Openshift are mounted with quota option enabled
mmchfs clusterfs -Q yes

And filesetdf flag is active for correct ‘df’ output on pods with dynamically provisioned storage.
mmchfs clusterfs --filesetdf

Create a namespace in OpenShift and switch there
oc new-project ibm-spectrum-scale-csi-driver

Create a secret csisecret-local. For username and password use base64 encoded credentials for csiadmin user you created before.
vi gpfs-local-secret.yaml

apiVersion: v1
data:
  username: Y3NpYWRtaW4=
  password: cGFzc3cwcmQ=
kind: Secret
type: Opaque
metadata:
  name: csisecret-local
  namespace: ibm-spectrum-scale-csi-driver
  labels:
    app.kubernetes.io/name: ibm-spectrum-scale-csi-operator # Used by the operator to detect changes, set on load of CR change if secret matches name in CR and namespace.

Check that the secret was created
oc get secret -n ibm-spectrum-scale-csi-driver | grep csisecret-local

Create an instance of IBM Spectrum Scale Driver

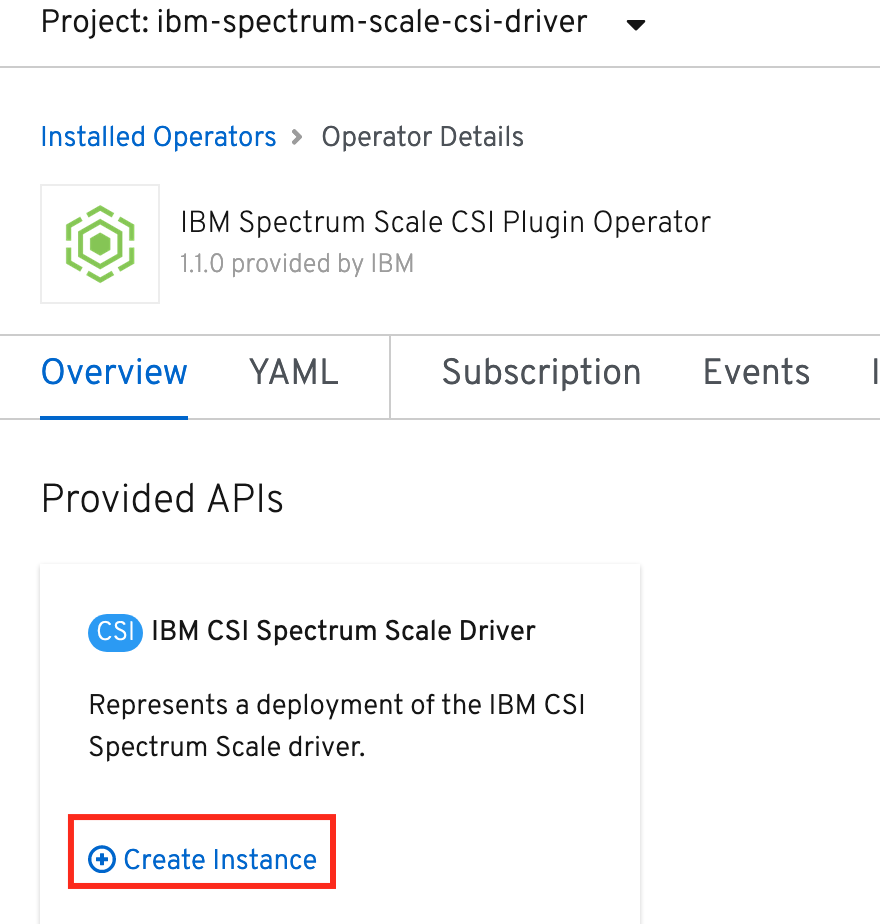

You will be prompted to configure a yaml file for the driver. Set required values there. Use my yaml below as a reference.

apiVersion: csi.ibm.com/v1
kind: CSIScaleOperator
metadata:
  labels:
    app.kubernetes.io/instance: ibm-spectrum-scale-csi-operator
    app.kubernetes.io/managed-by: ibm-spectrum-scale-csi-operator
    app.kubernetes.io/name: ibm-spectrum-scale-csi-operator
  name: ibm-spectrum-scale-csi
  namespace: ibm-spectrum-scale-csi-driver
spec:
  clusters:
    - id: '9622861446451689873'
      primary:
        primaryFs: clusterfs
        primaryFset: csifset
      restApi:
        - guiHost: 192.168.28.59
      secrets: csisecret-local
      secureSslMode: false
  scaleHostpath: /root/clusterfs
status: {}

To get cluster id run this command: mmlscluster

If you don’t enforce quota on root user, then he can use all available gpfs storage on a filesystem (thus, ignoring the storage request value as stated in a PVC). To enforce quota for root user, execute the command
mmchconfig enforceFilesetQuotaOnRoot=yes -i

Test that our dynamic provisioning is working

Create a storage class

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
   name: ibm-spectrum-scale-csi-lt
provisioner: spectrumscale.csi.ibm.com
parameters:
   volBackendFs: "clusterfs"
   volDirBasePath: "csifset"
reclaimPolicy: Delete

Create a test PVC

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: scale-test-pvc
spec:
  accessModes:
  - ReadWriteMany
  resources:
    requests:
      storage: 1Gi
  storageClassName: ibm-spectrum-scale-csi-lt

Check that a correlated PV was created dynamicaly and was bounded to a PVC
oc get pv

If everything is working as expected delete the test PVC. As the reclaim policy is Delete - it will also delete a corresponding PV together with the folder.
oc delete pvc scale-test-pvc
